Services
Casing Swabbing
- Swab 4.5” to 7” casing
- Depths to 4000m
- Swab to 6x16m3 open top tank or pressure vessel/flare stack
Tubing Swabbing
- Swab 2 3/8 to 3 1/2 Tubing
- Depths to 4000m with conventional rigs and 5000m with pressure rigs
- Swab to 16m3 open top tank, pressure vessel/flare stack or in-line with Pressure rig
- Conventional Rigs- ½” line, 600 Psi working pressure/3000 Psi flow pressure. Continuous swabbing at 5000lbs/max pull 10000lbs
- Pressure/In-Line Rigs- 5/16” line, 1000 Psi working pressure/5000 Psi flow pressure. Continuous swabbing at 3000lbs/ max pull 8000lbs

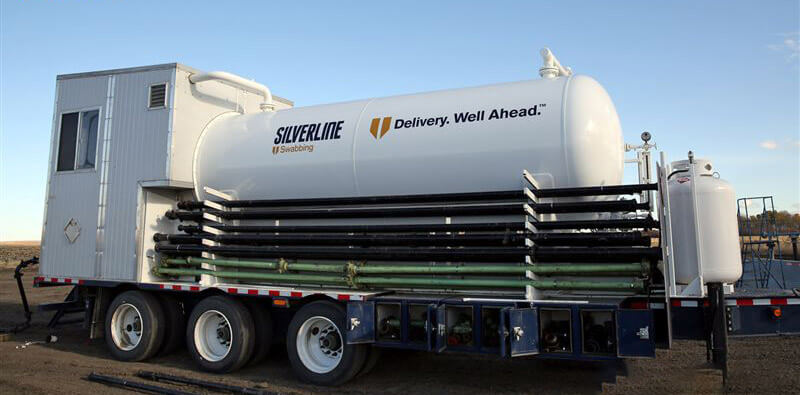

Pressure Vessels
- Casing and Tubing Swabbing
- 285 Psi maximum allowable working pressure
- 3x40-60 ft Flare Stacks
- 10000 Psi 2” flow line, 2000 Psi 2” flare, shipping land pop line
- 10000 Psi manifold with adjustable and bean chokes installed
- Continuous fiber slings for flow lines equipped with certified anchor points
- Digital flow meters
16m3 Open Top Rig Tank
- 50m 2” 2000 Psi line pipe and assortment of pup joints, hoses and elbows for tie in
- Adjustable choke and check valve
- Man lift installed on tank
Plunger and Bumper Spring Recovery and Installation
- Pulling and setting tools available
- Depths to 4000m with conventional rigs and 5000m with pressure rigs
